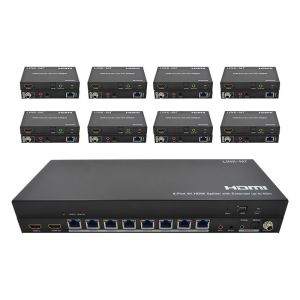

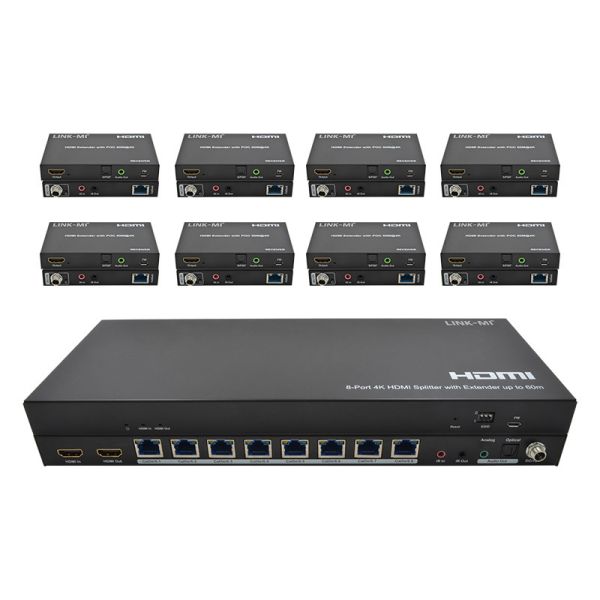

HDMI2.0 1x8 Splitter Extender Support 4K 60M POC
Introduction
LINK-MI LM-SPE108C HDMI2.0 1x8 Splitter Extender Support 4K 60M POC
Features
1. HDMI2.0 splitter extender, bandwidth up to 18Gbps, deep color up to 4K@60Hz 8bit
2. Distributes 1 HDMI source to 8 RJ45 output with 1 HDMI loop out
3. Transmission distance up to 60m at 4K@60Hz, 90m at 1080p@60hz over Cat5e/6 cable
4. HDCP2.2/1.4 Compliant
5. Support analogue and Toslink SPDIF audio out on both TX and RX side
6. Support HDR10, HLG
7. Support LPCM2.0/5.1, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby True HD
8. Support Bi-Directional wide band IR
9. Support auto downscale 4K@60hz to 1080P at RX end
10. Support EDID management
11. Support POC(RX powered by TX)
12. Support firmware updating through Micro USB port
13. With one built-in reset button for factory reset
Specification
| Operating Temperature Range | -5 to +40℃(+23 to +104℉) |
| Operating Humidity Range | 5 to 90%RH (No Condensation) |
| Input Video format | 720P / 1080P / 4K@60hz |
| Data transfer speed rate | 18 Gbps(Maximum) |
| Input port | 1xHDMI |
| Output ports | 8xRJ45 output port, 1xHDMI loop out |
| Output Video Format Supported | DTV/HDTV:480i/576i/480P/576P/720P/1080P, 4K VESA resolution |
| Transmission Distance | 60m at 4K@60Hz & 90m at 1080p@60hz |
| Power consumption | 30W(Maximum) |
| Dimension (L×W×H) | TX: 316.5x123.4x24mm; RX:110.2x68.3x18mm |
| Net Weight | TX: 950g; RX:3200g(8pcs) |
Connection Diagram
Panel Description
FAQ
Q1: Are you a factory or trading company?
A1: As a professional manufacturer, we supply HDMI related products more than 10 years in China.
Q2: Why should we choose you?
A2: We can offer products with factory price, good quality, best service and long warranty.
Q3: How about your product service?
A3: We can offer OEM and ODM, print your brand, your design on the product based on your order quantity.
Q4: How about the payment terms?
A4: We accept bank transfer, western union, money gram, paypal, Bank of China or cash as payments.
Q5: How do you ship the package?
A5: DHL, Fedex, EMS, by air, by sea...etc.
Q6: What kinds of warranty do you offer?
A6: Our excellent after-sale service team will provide you technical support online. We offer one year warranty for our products.
Q7: How could I buy the products I need if there is no price on the website?
A7: You can send us your inquiry about the products you need. Our sales will reply you within 24 hours to help you make the order.
