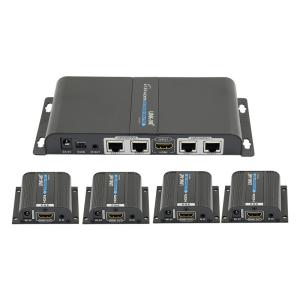

1×4 HDMI Extender Splitter
Introduction
LINK-MI LM-SPE104-POE This HDMI extender splitter works with 4 HDMI CAT6 extender receivers to split and extend 1 HDMI source to 4 HDMI displays over single CAT6/6a/7 cable up to 40m/131ft. The highest resolution supported is 1920x1080@60Hz, and it supports IR passback, EDID pass through and only one power adapter for the transmitter is needed,
the Receiver is powered by the transmitter over CAT6 cable. Ideal solution for HDMI exhibition, Video conference and show center, ect.
Features
1. Distribute 1 HDMI source to 4 HDMI displays over network cable simultaneously.
2. Compatible with CAT6/6a/7 network cables.
3. The transmission distance is up to 40m/131ft.
4. The highest resolution supported is . 1920x1080@60Hz
5. Support 20~60Hz IR pass back.
6. Support EDID . setting function
7. Support power from transmitter to receiver unit over the CAT6 cable.
8. Plug and play.
9. Wall-mounted function, easy installation.
Specification
| Items | Specifications |
| HDMI signal | HDMI1.3, Compatible with HDCP1.2 |
| Input | 1 x HDMI |
| Output | 4 x RJ45 |
| Support resolutions | 480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz |
| Transmit distance | Full HD resolution 1080p@60Hz up to 40 meters via CAT6 cable |
| IR signal | Support 20~60kHz IR device |
| EDID | Support EDID setting function |
| Working temperature | 0℃～60℃ |
| Power supply | DC 5V/3A |
| Power Consumption | <15W |
| Dimension | TX: 190(L) x 95.9(W) x 23.9(H) mm RX: 71.6×66.6×22.6mm |
| Color | Black |
Connection Diagram
Panel Description
FAQ
Q1: Are you a factory or trading company?
A1: As a professional manufacturer, we supply HDMI related products more than 10 years in China.
Q2: Why should we choose you?
A2: We can offer products with factory price, good quality, best service and long warranty.
Q3: How about your product service?
A3: We can offer OEM and ODM, print your brand, your design on the product based on your order quantity.
Q4: How about the payment terms?
A4: We accept bank transfer, western union, money gram, paypal, Bank of China or cash as payments.
Q5: How do you ship the package?
A5: DHL, Fedex, EMS, by air, by sea...etc.
Q6: What kinds of warranty do you offer?
A6: Our excellent after-sale service team will provide you technical support online. We offer one year warranty for our products.
Q7: How could I buy the products I need if there is no price on the website?
A7: You can send us your inquiry about the products you need. Our sales will reply you within 24 hours to help you make the order.
